Horizontal Exposed Fan Coil Units

Horizontal Exposed Fan Coil Units

    Horizontal exposed fan coil unit can be ideally hoisted at any position of the ceiling, elegant and beautiful, does not occupy any indoor area, and is easy to install.

    Air Flow: 170-3380cbm/h

    Email: support@aikegroupco.com

Product Description

Fp-WM horizontal exposed fan coil unit can be ideally hoisted at any position of the ceiling, elegant and beautiful, does not occupy any indoor area, and is easy to install. The shell is treated by electrostatic spraying, which can match the indoor decoration.

Fan Coil Safety Performance Testing Room


FP Series Fan Coil Performance Parameter Table

● FP-34WA: Size: 740*460*240(mm); Effective Room: 10m2

● FP-51WA: Size: 840*460*240(mm); Effective Room: 15m2

● FP-68WA: Size: 940*460*240(mm); Effective Room: 20m2

● FP-85WA Size: 1040*460*240(mm); Effective Room: 25m2

● FP-102WA Size: 1140*460*240(mm); Effective Room: 30m2

● FP-136WA Size: 1340*460*240(mm); Effective Room: 35m2

● FP-170WA Size: 1640*460*240(mm); Effective Room: 40m2

● FP-204WA Size: 1840*460*240(mm); Effective Room: 50m2

● FP-238WA Size: 2040*460*240(mm); Effective Room: 60m2


We have stock and can quickly pack, test and ship


Characteristic

● The surface cooler of the product is a seamless copper tube series with high-efficiency double-sided aluminum foil. The mechanical tube expansion process is adopted, so that the tubes are closely combined and the heat transfer performance is excellent.

● After special treatment, the air resistance of the heat exchanger is significantly reduced in the process of use. When the wind speed is large, there will be no cold condensation water droplets splashing. At the same time, the surface corrosion resistance is strengthened. The forged brass structure is used to collect water, which greatly extends the service life of the product; The motor adopts a three speed low-noise special motor with high-precision closed bearings. There is no need to refuel and maintain during operation. The operation is stable and reliable, and the service life is up to 35000 hours. The outgoing line of the motor is protected with metal hoses to avoid damage.

● Wide angle volute and metal multi blade centrifugal wind wheel are adopted, with high dynamic balance.

● The whole condensate tray is stamped and formed at one time to prevent dripping and water leakage. The surface is sprayed with plastic for corrosion prevention, which is durable.

● The thermal insulation material adopts high-density polyurethane, with small thermal conductivity, high water resistance, anti-aging, Flame retardant and non-toxic, which can ensure all-weather use without condensation.

● The lifting hole is equipped with rubber damping pad to minimize the noise of the unit.

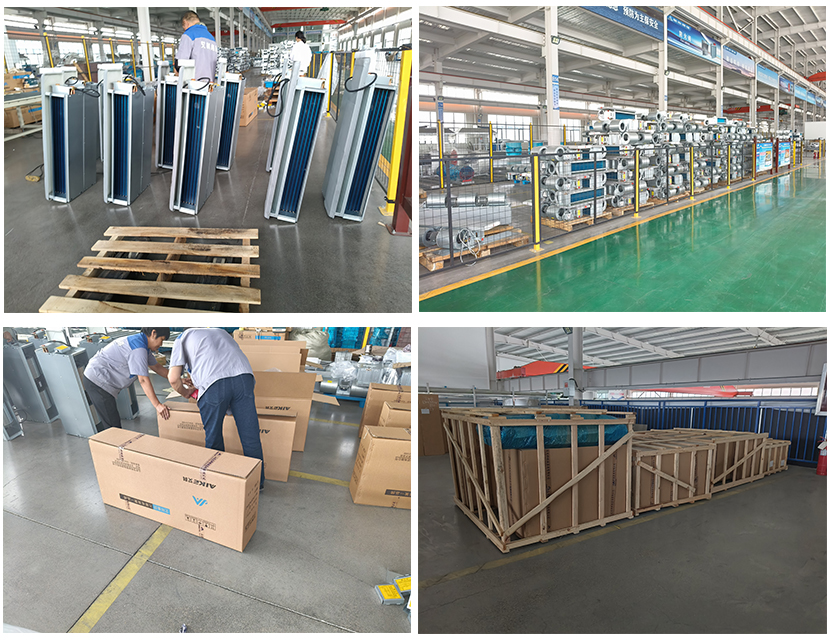

Company Showing


The types include: ordinary horizontal / vertical concealed installation, ultra-thin horizontal / vertical / exposed installation / concealed installation, embedded, fan-shaped ceiling type, vertical cabinet type, wall mounted type, etc., with more humanized design to fully meet the user's requirements for air volume, cooling capacity, air pressure and installation conditions.
