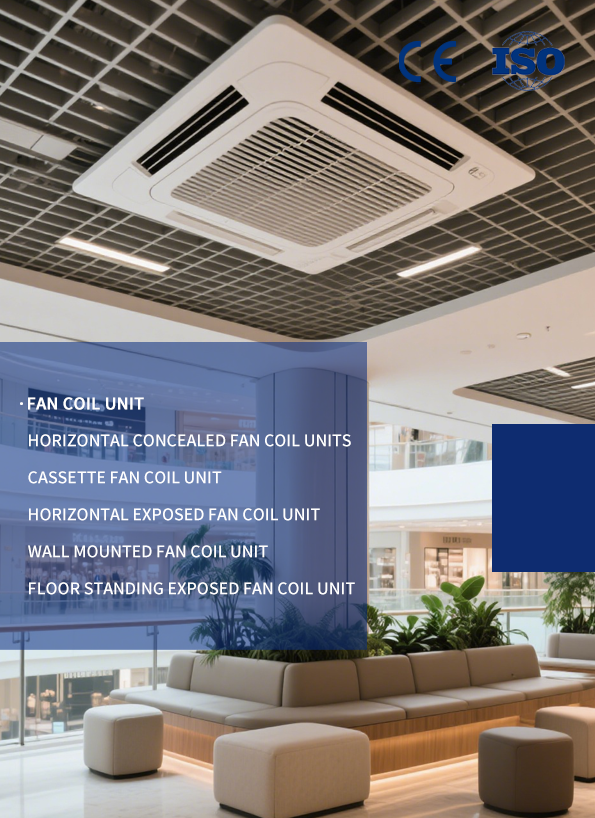

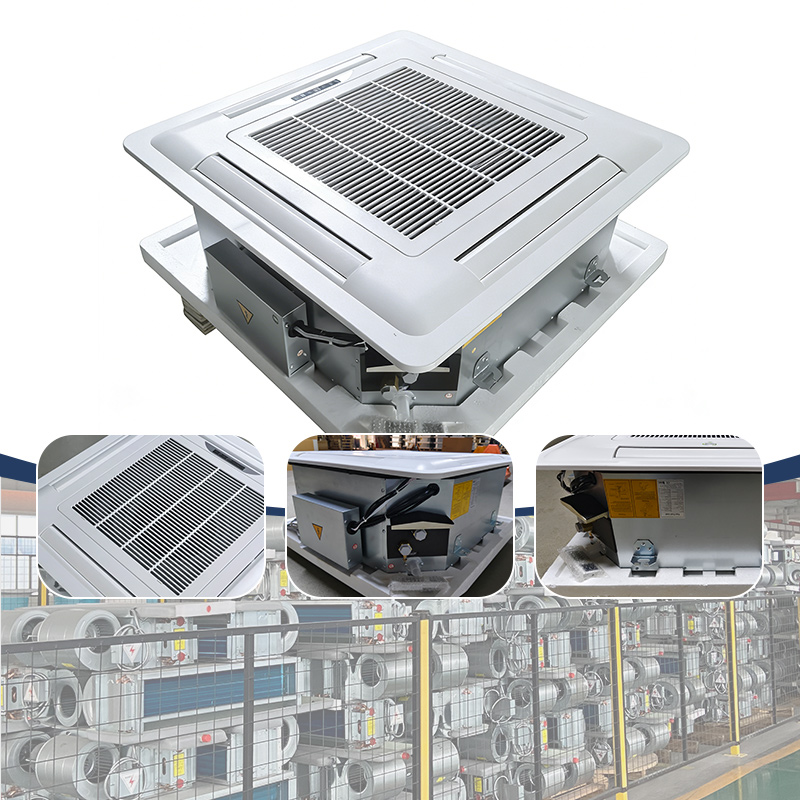

Ceiling Cassette Fan coil unit make each served area an independent controlled temperature zone to suit diverse requirements.
Air Flow: 170-3380cbm/h
Cooling Capacity: 3300-65000 BTU
Heating Capacity: 3000-95000 BTU
Ceiling Cassette Fan Coil comes in various sizes to suit different needs. These fan coils offer exceptional flexibility and tailored options for specific applications, guaranteeing an optimal solution for your particular requirements.
Equipped with an fan motor, the unit can also incorporate modulating valves to achieve maximum performance while minimizing energy usage. Additionally, the fan motor ensures remarkably quiet operation.
● FP-34WA: Size: 740*460*240(mm); Effective Room: 10m2
● FP-51WA: Size: 840*460*240(mm); Effective Room: 15m2
● FP-68WA: Size: 940*460*240(mm); Effective Room: 20m2
● FP-85WA Size: 1040*460*240(mm); Effective Room: 25m2
● FP-102WA Size: 1140*460*240(mm); Effective Room: 30m2
● FP-136WA Size: 1340*460*240(mm); Effective Room: 35m2
● FP-170WA Size: 1640*460*240(mm); Effective Room: 40m2
● FP-204WA Size: 1840*460*240(mm); Effective Room: 50m2
● FP-238WA Size: 2040*460*240(mm); Effective Room: 60m2
Remarks:1.The above performance parametersare measured according to the matching state without bringing back the bellows. The staticpressure at the outlet of KM unitis OPa.
2.Working condition parameters ofcoolingcapacity: inlet airdry bulbtemperature 7℃, wet bulb temperature 19.5℃, inlet water temperature7℃, water temperature difference 5℃.
3.Working condition parameters of heatsupply: the dy bulbtemperatureofinletair is 21℃, theinletwater temperature is60℃, and the lowof hot wateris the same as that of cooling.
4.Theaboveparameters comply withtheprovisions of GB/T 19232-2003. If the user has special requirements, please specify.
Overall Dimension of FP-KMQ/D Ultra-thin Embedded Fan Coil Unit

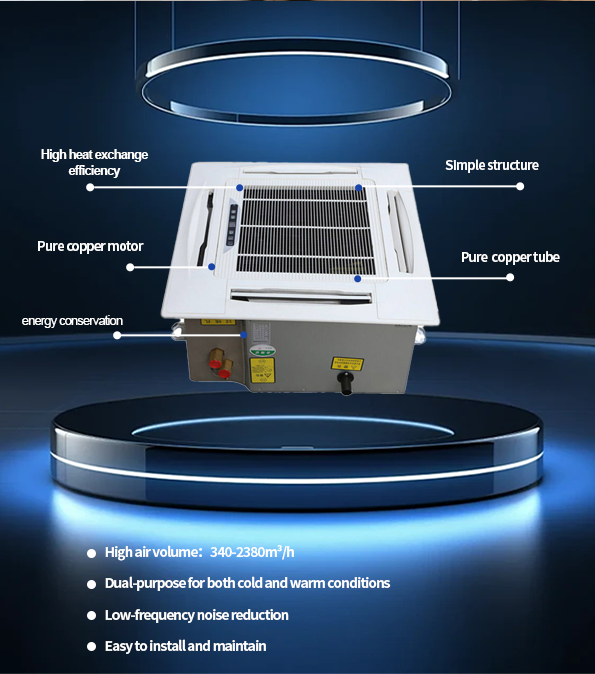

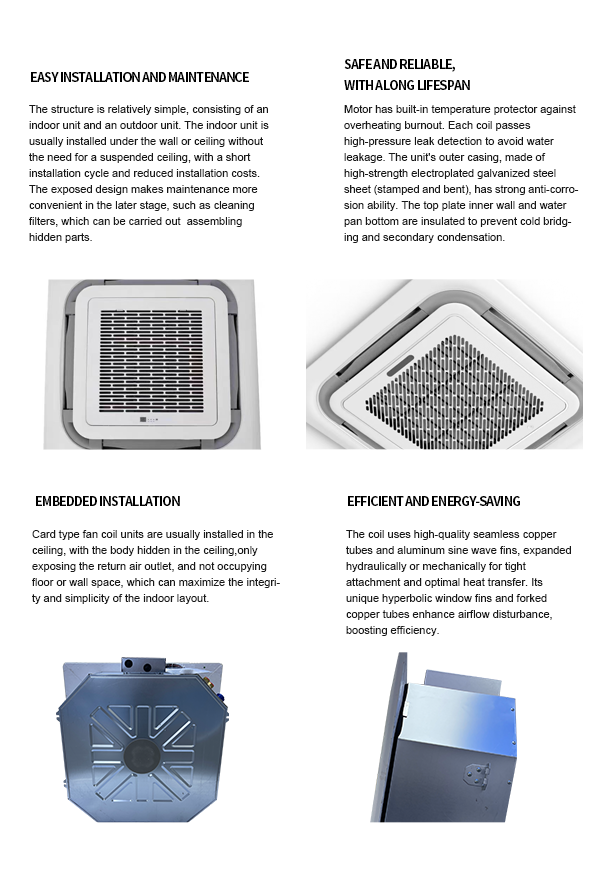

Ceiling Cassette Fan Coil Features:

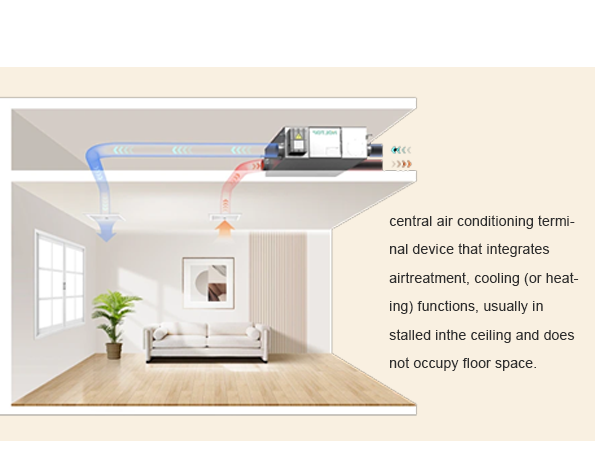

The ceiling cassette fan coil unit (two air outlets and four air outlets) is placed in the ceiling compartment, which does not occupy indoor space at all. The body adopts ABS panel, which is light and thin. The thickness of its host is 290mm and 390mm. It has a luxurious appearance and is highly decorative. It is a high-grade decoration in the room, especially suitable for restaurants, supermarkets, entertainment centers, villa living rooms, conference rooms, various household residences and other occasions.
Four (two) direction air supply and three-stage wind direction setting, strong circulating air volume, even if the ceiling height exceeds the standard floor height, it can also send comfortable air flow. The intelligent drainage device can make the water level drop up to 1500 mm, and the long-term filter cleaning screen can extend the cleaning cycle without frequent cleaning of the filter screen.
● Circular heat exchanger design, uniform air outlet. The four-dimensional air supply of the vortex fan ensures a particularly uniform and comfortable temperature.
● The vortex fan strongly adsorbs the dirty air, which can be used for indoor and outdoor ventilation, and the indoor air is more fresh and natural.
● Wide air supply range: 65 ° downward air supply from four sides.
● Three dimensional spiral blades ensure air volume and thinner shape, and irregular blade screw torque greatly reduces
Operating Noise
● The shell is made of high-quality rubber and plastic to reduce the noise to the lowest level.
Ordering Guide
● When selecting fan coil unit, please clarify the specification and model of the product and the left and right type of inlet and outlet water.
● When the horizontal concealed fan coil is equipped with a return air box, please indicate whether the return air is the lower return air or the rear return air.
● Horizontal concealed fan coil units are divided into three types: low static pressure (12Pa) and high static pressure (30Pa, 50pA). Please note when ordering. If there are no special requirements, they are supplied as low static pressure type.
● You are welcome to choose to use the "AIKE" brand fan coil unit. Our company follows the principle of continuous improvement of products, and may not be able to notify some improvements or changes in product performance, specifications and materials in time. Please understand.
