Horizontal Concealed Fan Coil Unit

Horizontal Concealed Fan Coil Unit

    FP-WA compact fan coil units are designed for versatile installation, whether concealed or mounted above the ceiling, effectively conserving floor space.

    Email: support@aikegroupco.com

    Whatsapp: +86-18963078408

Product Description

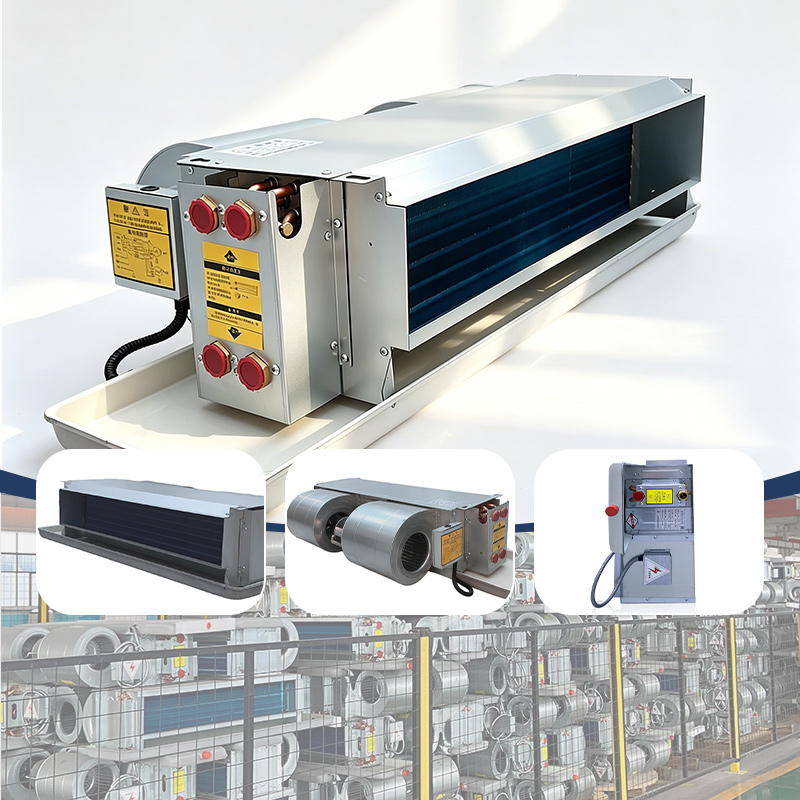

FP-WA horizontal concealed fan coil unit can be optional with return air box (divided into Lower return air and Rear return air). The outline of this unit is particularly low, which can be ideally placed in the decorative board. It has a strong decorative type. It is an ideal air-conditioning equipment for hotels, restaurants, offices and so on.

For optimal comfort in your commercial building, our FP Series horizontal, high-performance fan-coil units are the solution. With a wide selection of options and sizes available, you can easily select the ideal unit to suit your specific requirements.

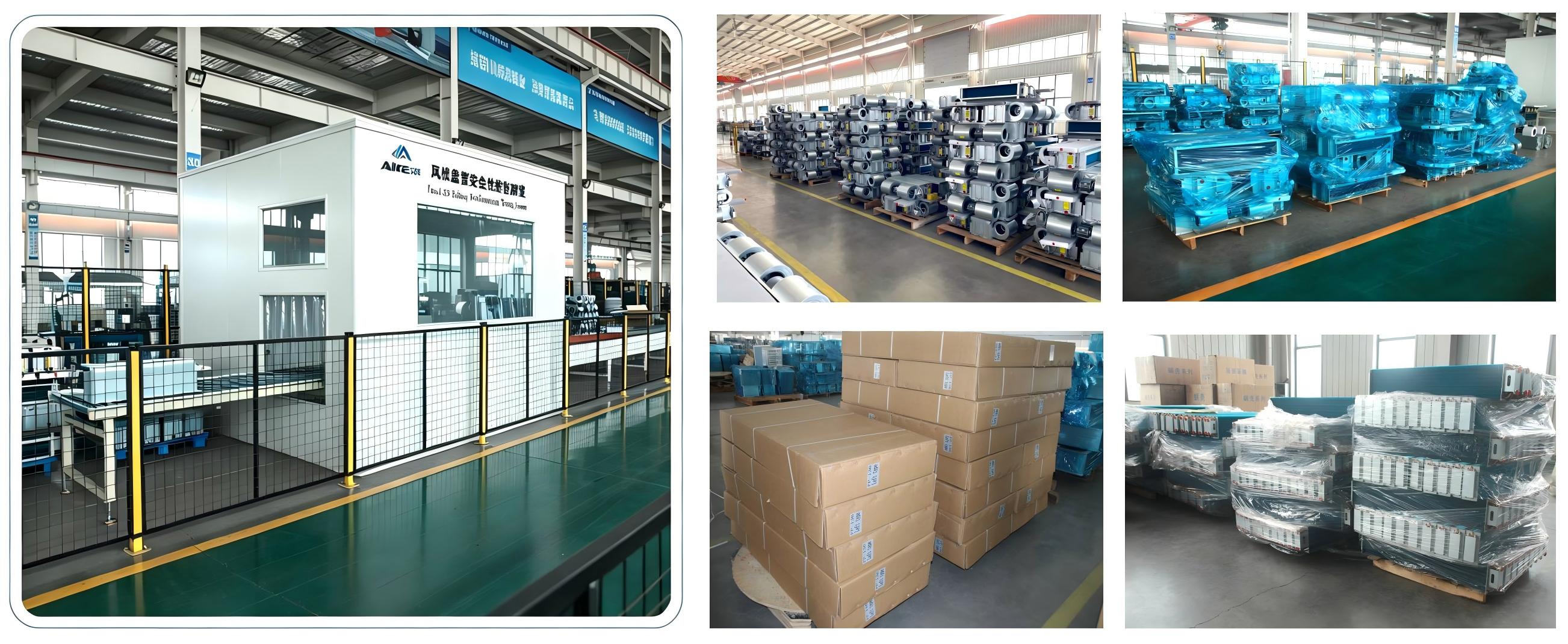

Fan Coil Safety Performance Testing Room

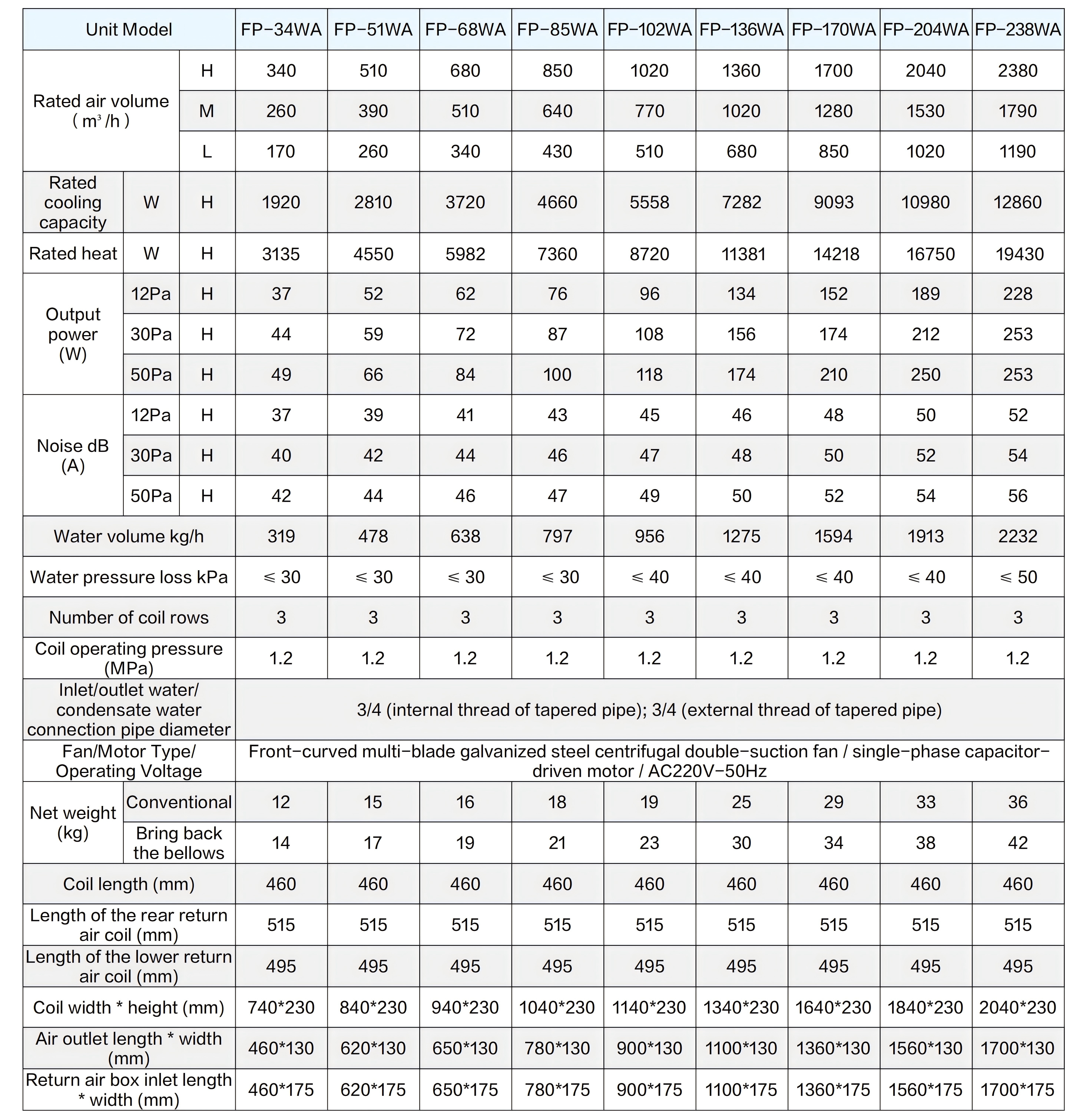

FP Series Fan Coil Performance Parameter Table

● FP-34WA: Size: 740*460*240(mm); Effective Room: 10m2

● FP-51WA: Size: 840*460*240(mm); Effective Room: 15m2

● FP-68WA: Size: 940*460*240(mm); Effective Room: 20m2

● FP-85WA Size: 1040*460*240(mm); Effective Room: 25m2

● FP-102WA Size: 1140*460*240(mm); Effective Room: 30m2

● FP-136WA Size: 1340*460*240(mm); Effective Room: 35m2

● FP-170WA Size: 1640*460*240(mm); Effective Room: 40m2

● FP-204WA Size: 1840*460*240(mm); Effective Room: 50m2

● FP-238WA Size: 2040*460*240(mm); Effective Room: 60m2


Overall Dimension Drawing of FP-WA Horizontal Concealed Fan Coil Unit


Overall Dimension Drawing of FP-WA Horizontal Concealed Fan Coil Unit with Return Air Box




Note: 1. Standard units do not include return air box except for special requirements

2. The air return mode of air return box type unit is divided into rear air return and lower air return (as shown in the figure)

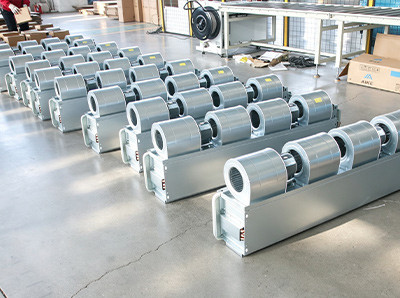

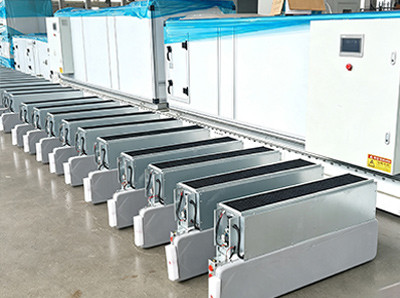

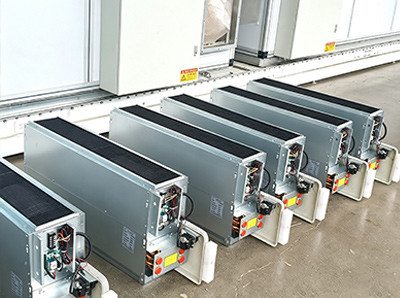

We have stock and can quickly pack, test and ship
