Ceiling mounted air Handling units are used for ventilation and refrigeration in a number of buildings, ranging from industrial factories to shopping malls.
Airflow Range: 1500~15000 m3/h
If you have specific questions about KD(X) Series of Ceiling Mounted Air Handling Units or need details on suppliers and manufacturers, feel free to ask!

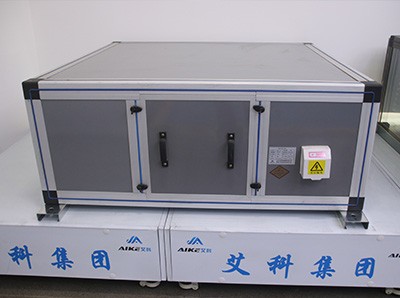

KD (X) ceiling air conditioning unit serves as a central air conditioning terminal system designed for air treatment. This unit is capable of filtering air, providing cooling and dehumidification, heating, humidification, and introducing fresh air. It is suitable for distributing treated air through ductwork over considerable distances, making it ideal for environments such as hotels, theaters, shopping malls, and office buildings, where comfort is essential. Additionally, it caters to the requirements of various industries, including electronics, chemicals, pharmaceuticals, tobacco, food, and light manufacturing.
This series comprises 13 models and 39 specifications, with air flow rates ranging from 1500 m3/h to 15000 m3/h and cooling capacities between 7.8 kW and 277.3 kW.
Key Technical Data of KD(X) Series of Suspended Ceiling Air Handling Unit
Features
◆ The incorporation of an aluminum alloy frame guarantees a lightweight structure, facilitating ease of disassembly and maintenance on-site.
◆ The use of double-layer polyurethane color steel panels, both internally and externally, prevents the development of cold bridges on the shell during operation.
◆ Prior to delivery, units undergo both dynamic and static equilibrium testing to ensure proper functionality.
◆ Closed rolling bearings are employed for the automatic adjustment of the center of gravity, providing automatic locking and resistance to pushing forces.
◆ Additionally, pre-filling the lubricant oil eliminates the need for maintenance under standard operating conditions. The filter utilized is a plate type, designed for cleaning and reuse.
Mounting of The Unit
◆ The suspended ceiling air handling unit shall be mounted horizontally inside the ceiling interiayer.The side of condensed water pipe lower as much as 5% than the another one is allowed,but mustn’t higher to ensure the condensed water drains smoothlv.The unit is to be installed at its place of destination in an accessihle way to the side connection and maintenance.
◆ A water seal shall be fixed at condensed water drainage position that connects with the unit,and ensure its height is high enough.
◆ The water enters into the cooler at the bottom, leaves at top.Stop valve and filters shall be added at water inlet.

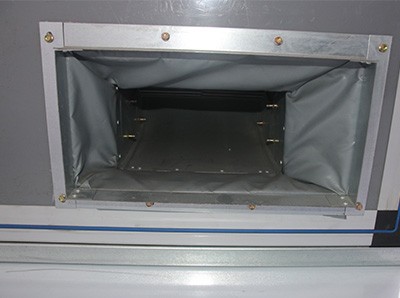

◆ The connection between unit and air ducts/ water pipes shall be fiexible.When connecting the water pipes,your torsion force mustn’t be too strong in case damages the heat exchanger. The pipeline shall be supported by its own supporting frames, and mustn’t be born by the unit.
◆ The electric source shall be 380v,50Hz.Only meeting this requirement,can turn on the fan.After turning on,check the fan steering, if wrong shall stop it and change the electric source phase orders.
◆ The fan shall connect with the earth properly and have reliable protections like over-load,over-heat.phase-lack and others.
