The tank plate specifications are: 1000*1000mm; 1000*500mm; 500*500mm. The thick ness is 4mm, 6mm, 7mm,7.5mm, 9mm, 10mm, 12mm, 14mm.
Email: support@aikegroupco.com
Whatsapp: +86-18963078408
GRP Panel Performance And Specifications
The tank plate specifications are: 1000*1000mm; 1000*500mm; 500*500mm. The thickness is 4mm, 6mm,7mm,7.5mm, 9mm, 10mm, 12mm, 14mm. The 4mm thick ness plate is used for the water tank cover.
Therefore, the water tank of the required capacitycan be assembled at will.
Item | Performance index |
Tensile strength,MPa | ≥60 |
Bending strength,MPa | ≥100 |
Flexural modulus,Gpa | ≥7.0 |
Rarcnl hardness | ≥60 |
Water absorption rate,% | ≤1.0 |
Glass fiber content，% | ≥25 |

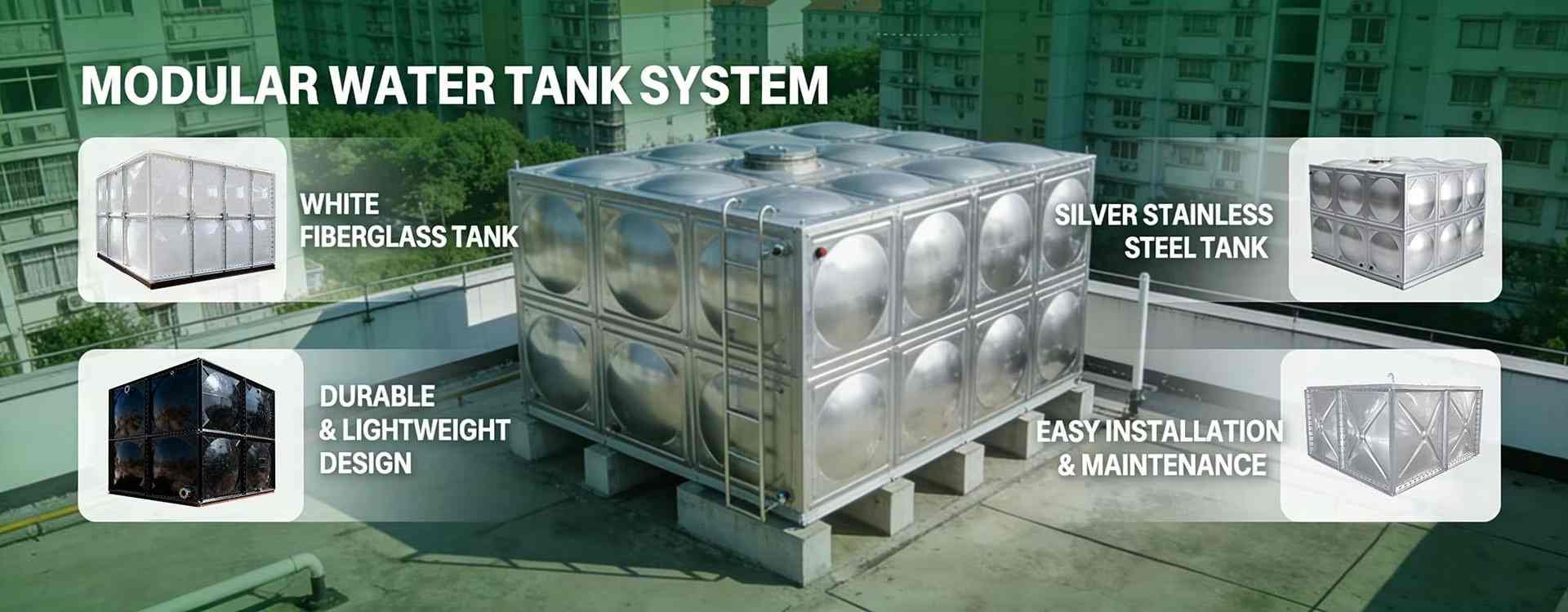

GRP Water Tank/SMC Water Tank/FRP Water Tank
The GRP module water tank represents an advanced solution following the evolution of traditional water storage systems such as reinforced concrete tanks, steel plate tanks, and stainless steel tanks. This innovative water tank integrates GRP molding panels, sealing materials, a metal framework, and a piping system, allowing for efficient assembly on-site.
Cleanliness and Sanitation
SMC Water Tanks comply with applicable Food Sanitation regulations. The complete obstruction of external light effectively inhibits the proliferation of bacteria and germs. Notably, the use of large panels eliminates the need for existing internal structures, facilitating the long-term hygienic use of the water tanks.
Exceptional Durability
The internal components of the water tank are composed of a Storage Tank System (STS) and a Base Layer (STS PE coating and Winding Pipes), which are designed to resist corrosion and rust. The external elements are treated with Melt Zinc plating, ensuring a semi-permanent lifespan.
Complete Water Tightness
To ensure water tightness, specially formulated sealants with international patents are employed.
Rational Capacity Design
A variety of panel configurations are utilized to create tanks of diverse capacities and dimensions.
Convenient Installation
Standardized components facilitate on-site assembly, allowing materials to be easily transported into confined spaces for efficient installation.
Outstanding Thermal Protection
For underground installations, single panels are utilized, while insulated panels, which consist of a single panel with compressed insulation material, provide superior thermal protection for outdoor water tanks.
GRP Water Tank ADVANTAGE
● A New Type Of Water Tank Currently Used Internationally
● Increase The Seismic And Impact Strength And Improvethe Compressive Strength And Service Life.
● Selection Oflightweight, High-Strength, Corrosion-Resistant Nonmetallicpipes, Beautiful Appearance, Easy To Use, Maintain And Manage.
● With Ventilation, Lighting, Heat Dissipation, Anti-Skidexplosion-Proof And Other Properties
GRP Panel Performance And Specifications
The tank plate specifications are: 1000*1000mm; 1000*500mm;500*500mm. The thickness is 4mm, 6mm,7mm,7.5mm, 9mm, 10mm, 12mm, 14mm. The 4mmthickness plate is used for the water tank cover, Therefore, the water tank of the required capacitycan be assembled at will.
